ALURON AS 110 PASSIV

ALURON AS 110 PASSIV

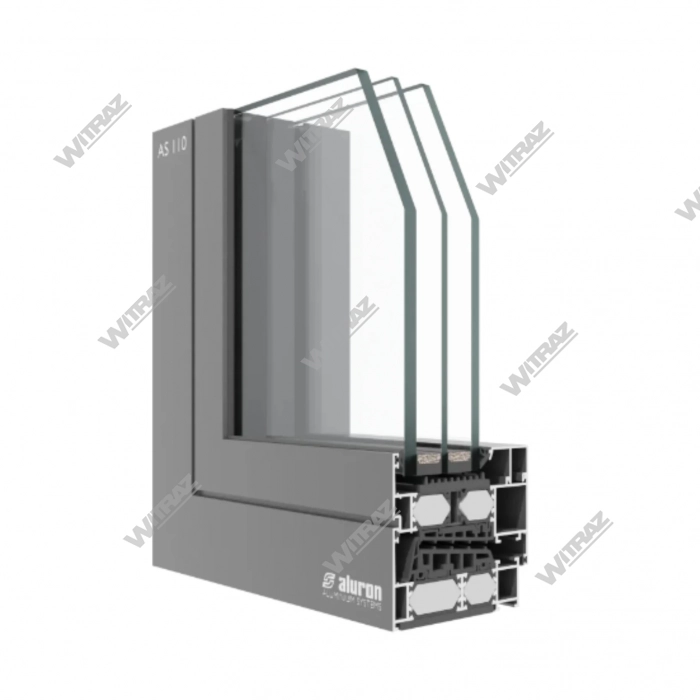

ALURON AS 110 PASSIV system is an aluminum window and door system with five chambers, developed for the construction of windows, balcony doors and shop-windows with the highest possible thermal insulation. It is intended for use with three-chamber glass units (e.g. 6/18/4/18/6 mm), which allows maintaining high static characteristics of the sashes, and also provides increased acoustic protection.

Technical specifications:
- Installation depth: 110 mm
- Sash depth: 119 mm
- Glazing thickness: 47 – 74,5 mm
- Maximum sash height: 3500 mm
- Maximum sash width: 1700 mm
- Maximum sash weight: 300 kg

Functional features:
- The 5-chamber design provides excellent structural rigidity and high performance characteristics;
- Possibility of manufacturing large windows and doors – up to 300 kg sash weight;
- Elegant modern look.

The ALURON AS 110 PASSIV system is an excellent option for those looking for products with advanced thermal and sound insulation that can withstand large constructions and meet the requirements of a passive house. Extended configurations and fittings allow to adapt the design to modern architectural solutions.
